RグラフィックスクックブックをSageで試してみる
Rグラフィックスクックブック ―ggplot2によるグラフ作成のレシピ集 にでている例題をpython版ggplotで試し、ggplotでサポートしていない部分はRのggplot2をSageから操作してプロットしてみました。
Sageでデータをプロットするときに参考にしてください。
# Rの必要なライブラリ
#r("install.packages('ggplot2')")
r('library(ggplot2)')
#r("install.packages('gcookbook')")
r('library(gcookbook)')
# RUtilでjsonliteを使用するため、未インストールならインストールが必要
#r("install.packages('jsonlite')")
# Pythonパッケージのインポート
import pandas as pd
import numpy as np
from ggplot import *
# RUtilにRとPandasのデータフレームを相互に変換する関数を追加
load(DATA + 'RUtil.py')
|
|
連続値をカテゴリに変換する
Pandasを使って連続値の区間で区切って処理する方法の紹介です。知っていると便利です。
age = np.array([20, 22, 25, 27, 21, 23, 37, 31, 61, 45, 41, 32])
sex = np.array(['F', 'M', 'M', 'M', 'F', 'M', 'F', 'M', 'F', 'M', 'F', 'M'])
df = pd.DataFrame({'age': age, 'sex': sex})
df
age sex 0 20 F 1 22 M 2 25 M 3 27 M 4 21 F 5 23 M 6 37 F 7 31 M 8 61 F 9 45 M 10 41 F 11 32 M [12 rows x 2 columns] age sex 0 20 F 1 22 M 2 25 M 3 27 M 4 21 F 5 23 M 6 37 F 7 31 M 8 61 F 9 45 M 10 41 F 11 32 M [12 rows x 2 columns] |
# カテゴリ分けする区切り値
bins = [18, 25, 35, 60, 100]
cat_names = ['youth', 'YoungAdult', 'MiddleAged', 'Senior']
df['bins'] = pd.cut(df.age, bins, labels=cat_names)
df.head()
age sex bins 0 20 F youth 1 22 M youth 2 25 M youth 3 27 M YoungAdult 4 21 F youth [5 rows x 3 columns] age sex bins 0 20 F youth 1 22 M youth 2 25 M youth 3 27 M YoungAdult 4 21 F youth [5 rows x 3 columns] |
ここからプロット例
# gcookbookのサンプルデータからheightweightを取得する
heightweight = RDf2PandaDf("heightweight")
heightweight.head()
ageMonth ageYear heightIn sex weightLb 0 143 11.92 56.3 f 85.0 1 155 12.92 62.3 f 105.0 2 153 12.75 63.3 f 108.0 3 161 13.42 59.0 f 92.0 4 191 15.92 62.5 f 112.5 [5 rows x 5 columns] ageMonth ageYear heightIn sex weightLb 0 143 11.92 56.3 f 85.0 1 155 12.92 62.3 f 105.0 2 153 12.75 63.3 f 108.0 3 161 13.42 59.0 f 92.0 4 191 15.92 62.5 f 112.5 [5 rows x 5 columns] |
heightweight.tail()
ageMonth ageYear heightIn sex weightLb 231 164 13.67 66.5 m 112.0 232 189 15.75 65.0 m 114.0 233 164 13.67 61.5 m 140.0 234 167 13.92 62.0 m 107.5 235 151 12.58 59.3 m 87.0 [5 rows x 5 columns] ageMonth ageYear heightIn sex weightLb 231 164 13.67 66.5 m 112.0 232 189 15.75 65.0 m 114.0 233 164 13.67 61.5 m 140.0 234 167 13.92 62.0 m 107.5 235 151 12.58 59.3 m 87.0 [5 rows x 5 columns] |

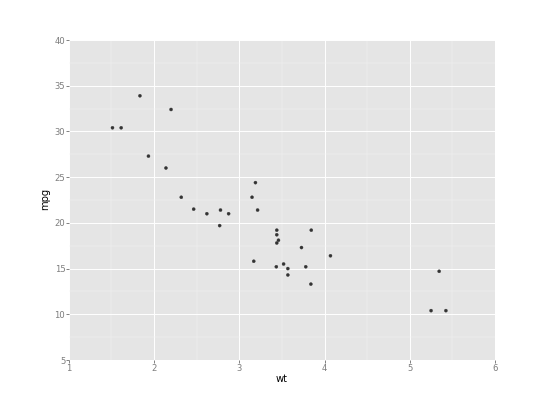

# Rec.2.1 散布図を作成する
ggplot(mtcars, aes(x='wt', y='mpg')) + geom_point()
<ggplot: (21462293)> <ggplot: (21462293)> |
ggsave('Rec.2.1.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

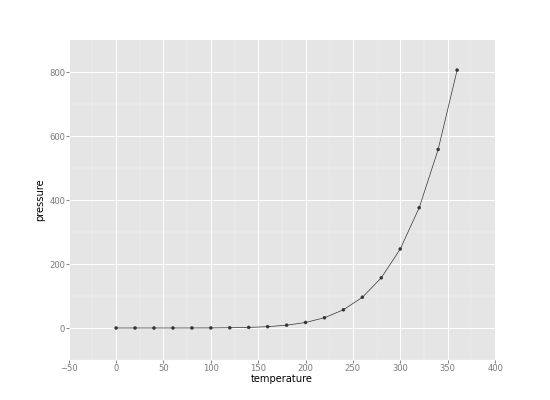

# Rec.2.2 折れ線グラフを作成する
# 単純なデータなら以下の様にRから持ってくることもできる
pressure = pd.DataFrame(sageobj(r('pressure'))['DATA'])
pressure.head()
pressure temperature 0 0.0002 0 1 0.0012 20 2 0.0060 40 3 0.0300 60 4 0.0900 80 [5 rows x 2 columns] pressure temperature 0 0.0002 0 1 0.0012 20 2 0.0060 40 3 0.0300 60 4 0.0900 80 [5 rows x 2 columns] |
ggplot(pressure, aes(x='temperature', y='pressure')) +geom_line() + geom_point()
<ggplot: (21501345)> <ggplot: (21501345)> |
ggsave('Rec.2.2.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

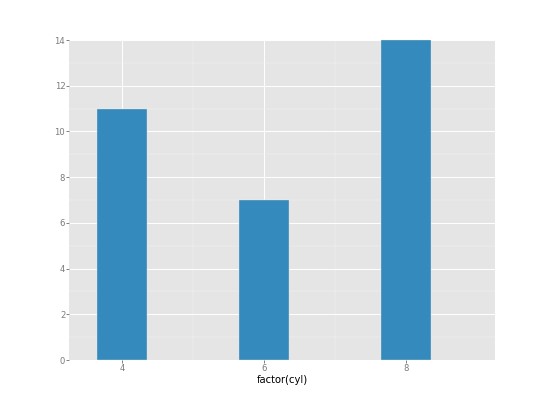

# Rec.2.3 棒グラフを作成する
# cylは連続値なので、factorで離散として扱う
ggplot(mtcars, aes(x='factor(cyl)')) +geom_bar()
<ggplot: (21695853)> <ggplot: (21695853)> |
ggsave('Rec.2.3.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

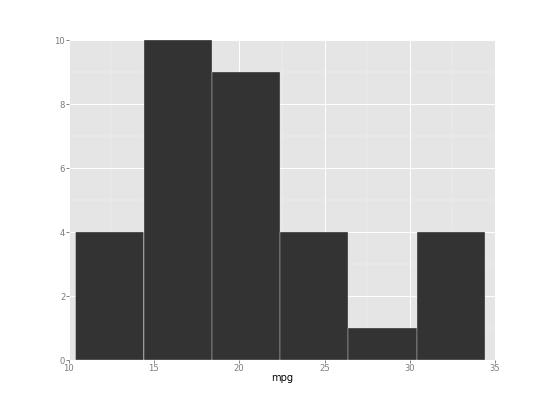

# Rec.2.4 ヒストグラムを作成する
ggplot(mtcars, aes(x='mpg')) + geom_histogram(binwidth='4')
<ggplot: (21705629)> <ggplot: (21705629)> |
ggsave('Rec.2.4.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rの結果と異なる！
graph = preGraph("fig2.4.png")
r('p <- ggplot(mtcars, aes(x=mpg)) + geom_histogram(binwidth=4)')
r('plot(p)')
postGraph(graph)
|
|
# ToothGrowthデータをRから持ってくる
ToothGrowth = RDf2PandaDf('ToothGrowth')
ToothGrowth.head()
dose len supp 0 0.5 4.2 VC 1 0.5 11.5 VC 2 0.5 7.3 VC 3 0.5 5.8 VC 4 0.5 6.4 VC [5 rows x 3 columns] dose len supp 0 0.5 4.2 VC 1 0.5 11.5 VC 2 0.5 7.3 VC 3 0.5 5.8 VC 4 0.5 6.4 VC [5 rows x 3 columns] |
# Rec.2.5 箱ひげ図を作成する
# geom_boxplotはまだ実装されていないみたい
# ggplot(ToothGrowth, aes(x='interaction(supp, dose)', y='len')) + geom_boxplot()
|
|
#ggsave('Rec.2.4.png', dpi=50)
|
|
graph = preGraph("fig2.5.png")
r('p <- ggplot(ToothGrowth, aes(x=interaction(supp, dose), y=len)) + geom_boxplot()')
r('plot(p)')
postGraph(graph)
|
|
# Rec.2.6 関数曲線をプロットする
# stat_functionはまだ実装されていないみたい
graph = preGraph("fig2.6.png")
r('myfun <- function(xvar){ 1/(1 + exp(-xvar + 10)) }')
r('p <- ggplot(data.frame(x=c(0, 20)), aes(x=x)) + stat_function(fun=myfun, geom="line")')
r('plot(p)')
postGraph(graph)
|
|
# Rec.3.1 棒グラフを作成する
pg_mean = pd.DataFrame({'group':['ctrl', 'trt1', 'trt2'], 'weight': [5.032, 4.661, 5.526]})
pg_mean.head()
group weight 0 ctrl 5.03200000000000 1 trt1 4.66100000000000 2 trt2 5.52600000000000 [3 rows x 2 columns] group weight 0 ctrl 5.03200000000000 1 trt1 4.66100000000000 2 trt2 5.52600000000000 [3 rows x 2 columns] |
ggplot(pg_mean, aes(x='group', weight='weight')) + geom_bar()
<ggplot: (30303073)> <ggplot: (30303073)> |
ggsave('Rec.3.1.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# R版と指定方法が異なるので
graph = preGraph("fig3.1.png")
r('p <- ggplot(pg_mean, aes(x=group, y=weight)) + geom_bar(stat="identity")')
r('plot(p)')
postGraph(graph)
|
|
# Fig3-2
BOD = RDf2PandaDf("BOD")
BOD.head()
Time demand 0 1 8.3 1 2 10.3 2 3 19.0 3 4 16.0 4 5 15.6 [5 rows x 2 columns] Time demand 0 1 8.3 1 2 10.3 2 3 19.0 3 4 16.0 4 5 15.6 [5 rows x 2 columns] |

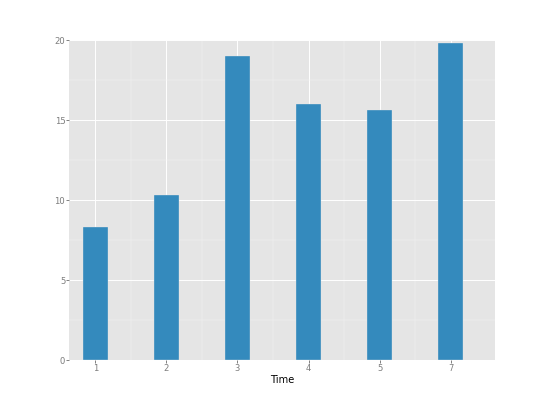

# ggplotの場合、factor(Time)のようにプロットされる
ggplot(BOD, aes(x='Time', weight='demand')) + geom_bar(stat="identity")
<ggplot: (30303081)> <ggplot: (30303081)> |
ggsave('fig.3.2a.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

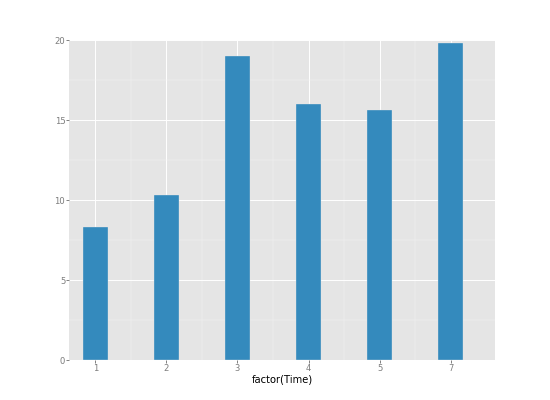

ggplot(BOD, aes(x='factor(Time)', weight='demand')) + geom_bar(stat="identity")
<ggplot: (30442637)> <ggplot: (30442637)> |
ggsave('fig.3.2b.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

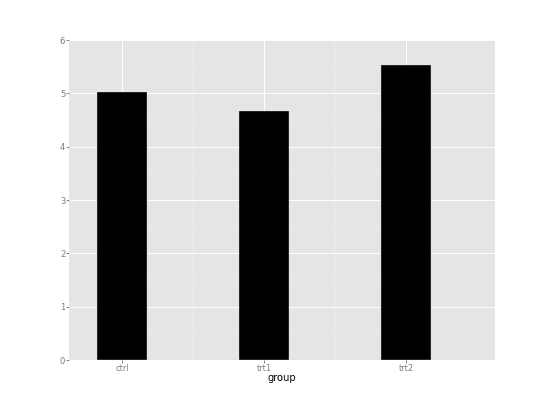

# Fig3-3
ggplot(pg_mean, aes(x='group', weight='weight')) + geom_bar(stat="identity", fill="lightblue", colour="black")
<ggplot: (30559941)> <ggplot: (30559941)> |
ggsave('fig.3.3.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

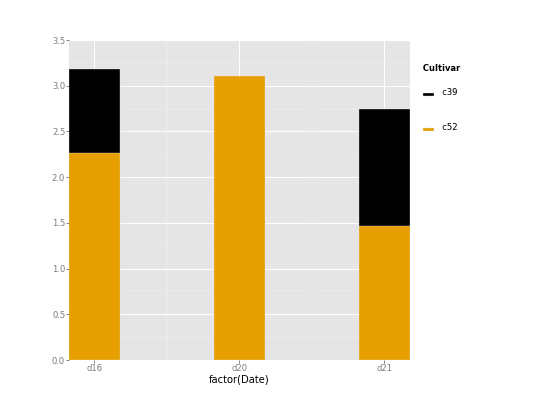

# Rec.3.2 棒をグループ化する
cabbage_exp = pd.DataFrame({'Cultivar': ['c39', 'c39', 'c39', 'c52', 'c52', 'c52'], 'Date': ['d16', 'd20', 'd21', 'd16', 'd20', 'd21'], 'Weight': [3.18, 2.8, 2.74, 2.26, 3.11, 1.47]})
cabbage_exp
Cultivar Date Weight 0 c39 d16 3.18000000000000 1 c39 d20 2.80000000000000 2 c39 d21 2.74000000000000 3 c52 d16 2.26000000000000 4 c52 d20 3.11000000000000 5 c52 d21 1.47000000000000 [6 rows x 3 columns] Cultivar Date Weight 0 c39 d16 3.18000000000000 1 c39 d20 2.80000000000000 2 c39 d21 2.74000000000000 3 c52 d16 2.26000000000000 4 c52 d20 3.11000000000000 5 c52 d21 1.47000000000000 [6 rows x 3 columns] |
# 横並びができない。d20の積み重ねの色が変？
#ggplot(cabbage_exp, aes(x='factor(Date)', weight='Weight', colour='Cultivar')) + geom_bar(position='dodge')
ggplot(cabbage_exp, aes(x='factor(Date)', weight='Weight', colour='Cultivar')) + geom_bar()
<ggplot: (30302033)> <ggplot: (30302033)> |
ggsave('Rec.3.2.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.3.2 棒をグループ化
graph = preGraph("fig3.4.png")
r('p <- ggplot(cabbage_exp, aes(x=Date, y=Weight, fill=Cultivar)) + geom_bar(position="dodge")')
r('plot(p)')
postGraph(graph)
|
|

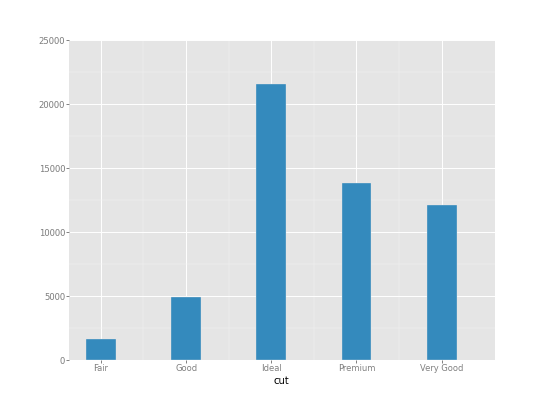

# Rec.3.3 個数を示す棒グラフを作成する
ggplot(diamonds, aes(x='cut')) + geom_bar()
<ggplot: (30708769)> <ggplot: (30708769)> |
ggsave('Rec.3.3.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.3.4 色つきの棒グラフを作成する
r('upc <- subset(uspopchange, rank(Change)>40)')
graph = preGraph("Rec.3.4.png")
r('p <- ggplot(upc, aes(x=Abb, y=Change, fill=Region)) + geom_bar(stat="identity")')
r('plot(p)')
postGraph(graph)
|
|
# Rec.3.5 棒の正負によって色を塗り分ける
# 値が正か負を示すpos列をデータフレームに追加する
r('csub <- subset(climate, Source=="Berkeley" & Year >= 1900)')
r('csub$pos <- csub$Anomaly10y >= 0')
r('head(csub)')
Source Year Anomaly1y Anomaly5y Anomaly10y Unc10y pos 101 Berkeley 1900 NA NA -0.171 0.108 FALSE 102 Berkeley 1901 NA NA -0.162 0.109 FALSE 103 Berkeley 1902 NA NA -0.177 0.108 FALSE 104 Berkeley 1903 NA NA -0.199 0.104 FALSE 105 Berkeley 1904 NA NA -0.223 0.105 FALSE 106 Berkeley 1905 NA NA -0.241 0.107 FALSE Source Year Anomaly1y Anomaly5y Anomaly10y Unc10y pos 101 Berkeley 1900 NA NA -0.171 0.108 FALSE 102 Berkeley 1901 NA NA -0.162 0.109 FALSE 103 Berkeley 1902 NA NA -0.177 0.108 FALSE 104 Berkeley 1903 NA NA -0.199 0.104 FALSE 105 Berkeley 1904 NA NA -0.223 0.105 FALSE 106 Berkeley 1905 NA NA -0.241 0.107 FALSE |
graph = preGraph("Rec.3.5.png")
r('p <- ggplot(csub, aes(x=Year, y=Anomaly10y, fill=pos)) + geom_bar(stat="identity", position="identity")')
r('plot(p)')
postGraph(graph)
|
|

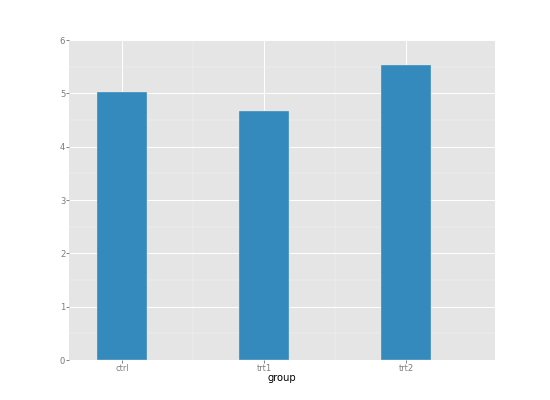

# Rec.3.6 棒の幅と間隔を調整する
# 最大の幅1.0
# 指定が効かない
ggplot(pg_mean, aes(x='group', weight='weight')) + geom_bar(stat="identity", width='1.0')
<ggplot: (30432305)> <ggplot: (30432305)> |
ggsave('Rec.3.6.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.3.7 積み上げ棒グラフを作成する
graph = preGraph("Rec.3.7.png")
r('p <- ggplot(cabbage_exp, aes(x=Date, y=Weight, fill=Cultivar)) + geom_bar(stat="identity")')
r('plot(p)')
postGraph(graph)
|
|
# Rec.3.8 100%積み上げ棒グラフ（Practical Data Science版）
graph = preGraph("Rec.3.8.png")
r('p <- ggplot(cabbage_exp) + geom_bar(aes(x=Date, y=Weight, fill=Cultivar), position="fill")')
r('plot(p)')
postGraph(graph)
|
|
# Rec.3.9 棒グラフにラベルを追加する vjustでラベルの位置を調整
# python版はダメ
# ggplot(cabbage_exp, aes(x='factor(Date)', weight='Weight')) + geom_bar() + geom_text(aes(y='Weight', label='Weight'))
graph = preGraph("Rec.3.9.png")
r('p <- ggplot(cabbage_exp, aes(x=interaction(Date, Cultivar) , y=Weight)) + geom_bar(stat="identity")+ geom_text(aes(label=Weight, vjust=1.5, colour="white"))')
r('plot(p)')
postGraph(graph)
|
|
#ggsave('Rec.3.9.png', dpi=50)
|
|

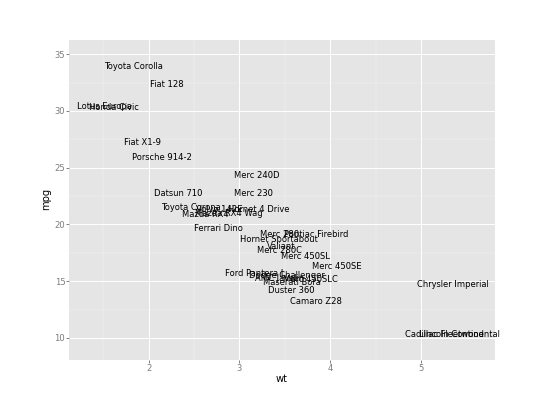

# geom_textは実装されているが、文字列のプロットのみをサポート
ggplot(aes(x='wt', y='mpg', label='name'), data=mtcars) + \
geom_text()
<ggplot: (30566849)> <ggplot: (30566849)> |
ggsave('test1.0.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.3.10 クリーブランドのドットプロットを作成する
r('tophit <- tophitters2001[1:25,]') # tophitters2001から上位25名を抽出
graph = preGraph("Rec.3.10.png")
r('p <- ggplot(tophit, aes(x=avg , y=name)) + geom_point()')
r('plot(p)')
postGraph(graph)
|
|
# PDSの手法で、X軸とY軸を入れ替えてみる
graph = preGraph("fig-3.29.png")
r('p <- ggplot(tophit, aes(x=avg , y=name)) + geom_point(size=3) + coord_flip() + theme(axis.text.x=element_text(angle=60, hjust=1))')
r('plot(p)')
postGraph(graph)
|
|

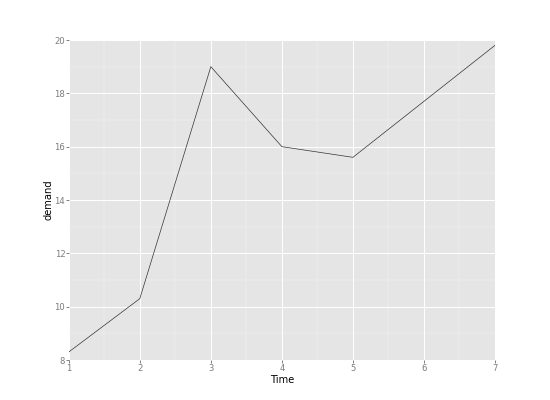

# Rec.4.1 基本的な折れ線グラフを作成する(Python版)
ggplot(BOD, aes(x='Time', y='demand')) + \
geom_line()
<ggplot: (30891805)> <ggplot: (30891805)> |
ggsave('Rec.4.1.0.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

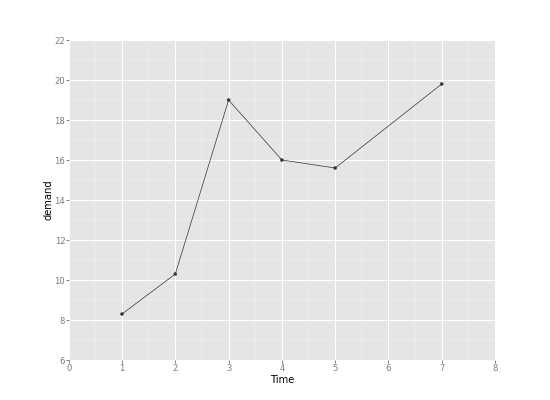

# Rec4.2 折れ線グラフに点を追加する(Python版)
ggplot(BOD, aes(x='Time', y='demand')) + \
geom_line() + geom_point()
<ggplot: (31413981)> <ggplot: (31413981)> |
ggsave('Rec.4.2.0.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

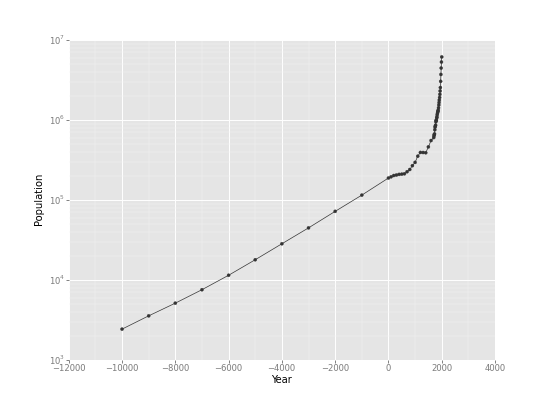

# Y軸を対数表示を加える(Python版)
worldpop = RDf2PandaDf("worldpop")
|
|
ggplot(worldpop, aes(x='Year', y='Population')) + \
geom_line() + geom_point() + scale_y_log()
<ggplot: (30900901)> <ggplot: (30900901)> |
ggsave('fig-4.5.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

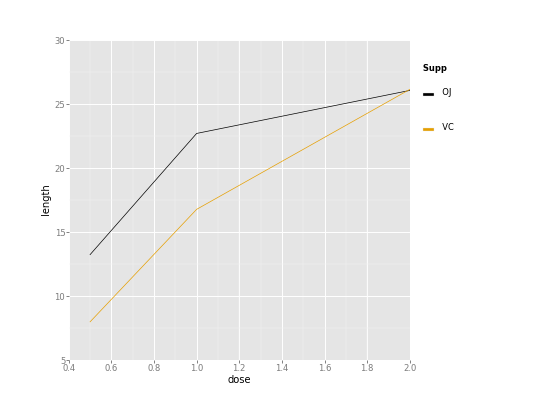

# Rec.4.3 複数の線を持つ折れ線グラフを作成する(Python版)
r('library(plyr)')
# ToothGrowthデータを要約する
r('tg <- ddply(ToothGrowth, c("supp", "dose"), summarise, length=mean(len))')
supp dose length 1 OJ 0.5 13.23 2 OJ 1.0 22.70 3 OJ 2.0 26.06 4 VC 0.5 7.98 5 VC 1.0 16.77 6 VC 2.0 26.14 supp dose length 1 OJ 0.5 13.23 2 OJ 1.0 22.70 3 OJ 2.0 26.06 4 VC 0.5 7.98 5 VC 1.0 16.77 6 VC 2.0 26.14 |
tg = RDf2PandaDf("tg")
|
|
ggplot(tg, aes(x='dose', y='length', colour='supp')) + \
geom_line()
<ggplot: (31413049)> <ggplot: (31413049)> |
ggsave('Rec.4.3.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.4.4 線の体裁を変更する(Python版) Rではlinetypeで線種を指定
ggplot(BOD, aes(x='Time', y='demand')) + \
geom_line(linestyle="dashed", color="blue")
<ggplot: (31956733)> <ggplot: (31956733)> |
ggsave('Rec.4.4.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

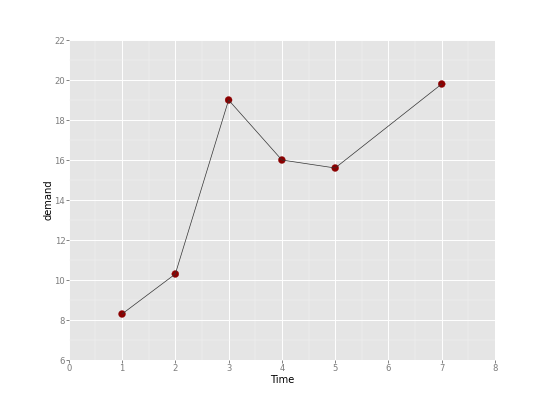

# Rec.4.5 点の体裁を変更する(Python版) R版とはsizeの単位が異なる、記号の形（shape=22）とfillは指定不可
ggplot(BOD, aes(x='Time', y='demand')) + geom_line() + \
geom_point(size=100, color="darkred")
<ggplot: (32421753)> <ggplot: (32421753)> |
ggsave('Rec.4.5.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

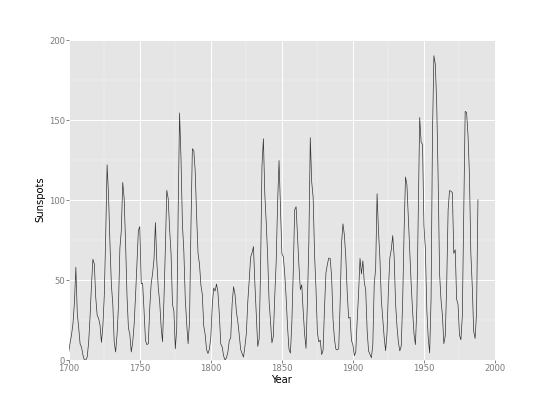

# Rec.4.6 網掛け領域付きのグラフを作成する (Python版未完成）
r('sunspotyear <- data.frame(Year = as.numeric(time(sunspot.year)), Sunspots = as.numeric(sunspot.year))')
sunspotyear = RDf2PandaDf('sunspotyear'); sunspotyear.head()
Sunspots Year 0 5 1700 1 11 1701 2 16 1702 3 23 1703 4 36 1704 [5 rows x 2 columns] Sunspots Year 0 5 1700 1 11 1701 2 16 1702 3 23 1703 4 36 1704 [5 rows x 2 columns] |
ggplot(sunspotyear, aes(x="Year", y="Sunspots")) + geom_line()
<ggplot: (31965761)> <ggplot: (31965761)> |
ggsave('Rec.4.6.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# R版
graph = preGraph("fig-4.17.png")
r('p <- ggplot(sunspotyear, aes(x=Year, y=Sunspots)) + geom_area()')
r('plot(p)')
postGraph(graph)
|
|
# Rec.4.7 積み上げ面グラフを作成する（ダメ）
uspopage = RDf2PandaDf('uspopage'); print uspopage.head()
ggplot(uspopage, aes(x="Year", y="Thousands", fill="AgeGroup")) + geom_area()
AgeGroup Thousands Year 0 <5 9181 1900 1 5-14 16966 1900 2 15-24 14951 1900 3 25-34 12161 1900 4 35-44 9273 1900 [5 rows x 3 columns] Traceback (click to the left of this block for traceback) ... KeyError: 'ymin' AgeGroup Thousands Year
0 <5 9181 1900
1 5-14 16966 1900
2 15-24 14951 1900
3 25-34 12161 1900
4 35-44 9273 1900
[5 rows x 3 columns]
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "_sage_input_74.py", line 10, in <module>
exec compile(u'open("___code___.py","w").write("# -*- coding: utf-8 -*-\\n" + _support_.preparse_worksheet_cell(base64.b64decode("IyBSZWMuNC43IOepjeOBv+S4iuOBkumdouOCsOODqeODleOCkuS9nOaIkOOBmeOCi++8iOODgOODoe+8iQp1c3BvcGFnZSA9IFJEZjJQYW5kYURmKCd1c3BvcGFnZScpOyBwcmludCB1c3BvcGFnZS5oZWFkKCkKZ2dwbG90KHVzcG9wYWdlLCBhZXMoeD0iWWVhciIsIHk9IlRob3VzYW5kcyIsIGZpbGw9IkFnZUdyb3VwIikpICsgZ2VvbV9hcmVhKCk="),globals())+"\\n"); execfile(os.path.abspath("___code___.py"))
File "", line 1, in <module>
File "/tmp/tmpO4dyiJ/___code___.py", line 4, in <module>
exec compile(u'ggplot(uspopage, aes(x="Year", y="Thousands", fill="AgeGroup")) + geom_area()
File "", line 1, in <module>
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/sage/misc/displayhook.py", line 451, in __call__
self.oldhook(obj)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/ggplot-0.4.5-py2.7.egg/ggplot/ggplot.py", line 108, in __repr__
figure = self.draw()
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/ggplot-0.4.5-py2.7.egg/ggplot/ggplot.py", line 285, in draw
callbacks = geom.plot_layer(layer)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/ggplot-0.4.5-py2.7.egg/ggplot/geoms/geom_area.py", line 16, in plot_layer
y1 = layer.pop('ymin')
KeyError: 'ymin'
|
ggsave('Rec.4.7.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# R版
graph = preGraph("fig-4.20.png")
r('p <- ggplot(uspopage, aes(x=Year, y=Thousands, fill=AgeGroup)) + geom_area() ')
r('plot(p)')
postGraph(graph)
|
|

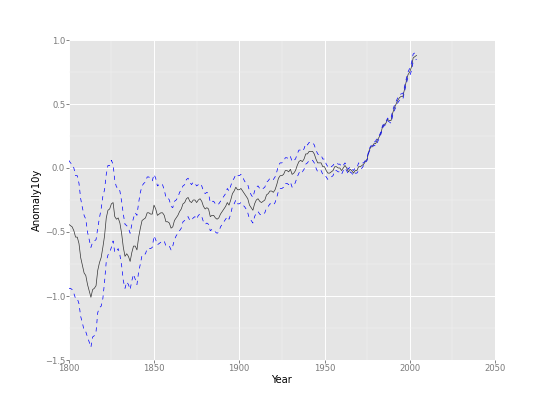

# Rec.4.9 信頼区間の領域を追加する
# Anomaly10y: 1950~1980年までの平均気温からの偏差の10年移動平均
# Unc10y: 95%の信頼区間
r('clim <- subset(climate, Source == "Berkeley", select=c("Year", "Anomaly10y", "Unc10y"))')
clim = RDf2PandaDf('clim')
|
|
# 上限、下限の線で代用
up_line = pd.DataFrame({
'y': (clim.Anomaly10y + clim.Unc10y).tolist(),
'x': clim.Year.tolist()})
lw_line = pd.DataFrame({
'y': (clim.Anomaly10y - clim.Unc10y).tolist(),
'x': clim.Year.tolist()})
|
|
ggplot(clim, aes(x="Year", y="Anomaly10y")) + \
geom_line() + \
geom_line(aes(x="x", y="y"), linestyle="dashed", color="blue", data=up_line) + \
geom_line(aes(x="x", y="y"), linestyle="dashed", color="blue", data=lw_line)
<ggplot: (32980977)> <ggplot: (32980977)> |
ggsave('Rec.4.9.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# R版 alpha指定が効かない
graph = preGraph("fig-4.25.png")
r('p <- ggplot(clim, aes(x=Year, y=Anomaly10y)) + geom_ribbon(aes(ymin=Anomaly10y-Unc10y, ymax=Anomaly10y+Unc10y)) + geom_line()')
r('plot(p)')
postGraph(graph)
|
|

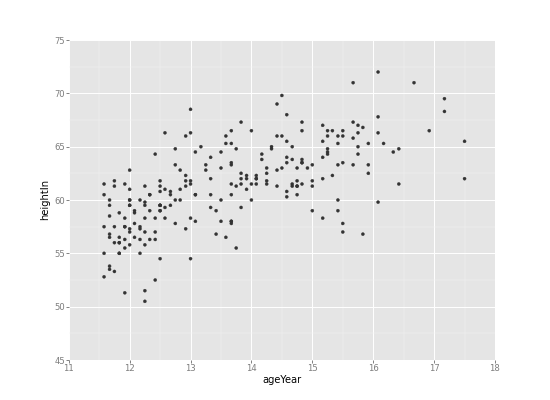

# Rec.5.1 基本的な散布図を作成する
ggplot(heightweight, aes(x="ageYear", y="heightIn")) + geom_point()
<ggplot: (32989893)> <ggplot: (32989893)> |
ggsave('Rec.5.1.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

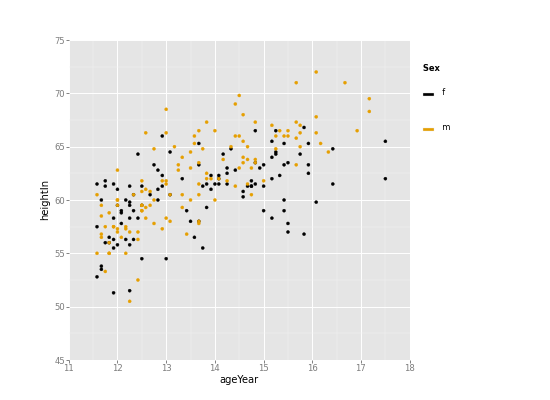

# R5.2 色と形を使用してデータポイントをグループ化
ggplot(heightweight, aes(x="ageYear", y="heightIn", color="sex")) + geom_point()
<ggplot: (31830037)> <ggplot: (31830037)> |
ggsave('fig-5.4a.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

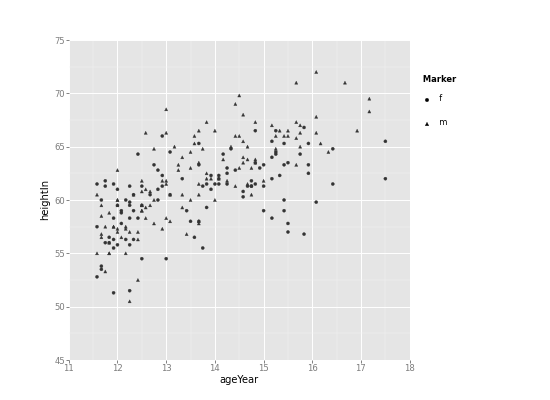

ggplot(heightweight, aes(x="ageYear", y="heightIn", shape="sex")) + geom_point()
<ggplot: (33143873)> <ggplot: (33143873)> |
ggsave('fig-5.4b.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.5.3 点の形を指定する
ggplot(heightweight, aes(x="ageYear", y="heightIn")) + geom_point(shape=3)
Traceback (click to the left of this block for traceback) ... AttributeError: Unknown property shape Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "_sage_input_88.py", line 10, in <module>
exec compile(u'open("___code___.py","w").write("# -*- coding: utf-8 -*-\\n" + _support_.preparse_worksheet_cell(base64.b64decode("IyBSZWMuNS4zIOeCueOBruW9ouOCkuaMh+WumuOBmeOCiwpnZ3Bsb3QoaGVpZ2h0d2VpZ2h0LCBhZXMoeD0iYWdlWWVhciIsIHk9ImhlaWdodEluIikpICsgZ2VvbV9wb2ludChzaGFwZT0zKQ=="),globals())+"\\n"); execfile(os.path.abspath("___code___.py"))
File "", line 1, in <module>
File "/tmp/tmpbf8dFv/___code___.py", line 3, in <module>
exec compile(u'ggplot(heightweight, aes(x="ageYear", y="heightIn")) + geom_point(shape=_sage_const_3 )
File "", line 1, in <module>
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/sage/misc/displayhook.py", line 451, in __call__
self.oldhook(obj)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/ggplot-0.4.5-py2.7.egg/ggplot/ggplot.py", line 108, in __repr__
figure = self.draw()
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/ggplot-0.4.5-py2.7.egg/ggplot/ggplot.py", line 285, in draw
callbacks = geom.plot_layer(layer)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/ggplot-0.4.5-py2.7.egg/ggplot/geoms/geom_point.py", line 24, in plot_layer
plt.scatter(**layer)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/matplotlib/pyplot.py", line 2933, in scatter
**kwargs)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/matplotlib/axes.py", line 6123, in scatter
collection.update(kwargs)
File "/usr/local/sage-6.0/local/lib/python2.7/site-packages/matplotlib/artist.py", line 670, in update
raise AttributeError('Unknown property %s' % k)
AttributeError: Unknown property shape
|
# R版
graph = preGraph("Rec.5.3.png")
r('p <- ggplot(heightweight, aes(x=ageYear, y=heightIn)) + geom_point(shape=3)')
r('plot(p)')
postGraph(graph)
|
|

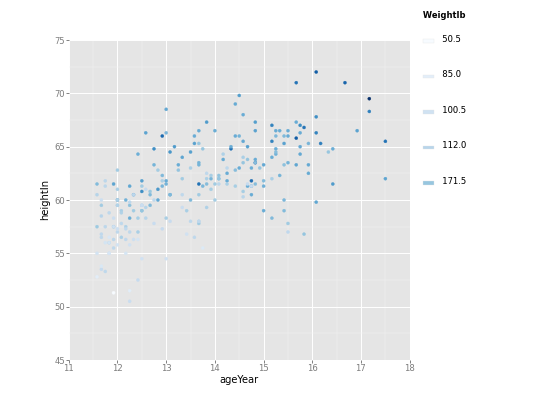

# Rec.5.4 連続値変数を色やサイズにマッピングする
ggplot(heightweight, aes(x="ageYear", y="heightIn", colour="weightLb")) + geom_point()
<ggplot: (32801993)> <ggplot: (32801993)> |
ggsave('Rec.5.4.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

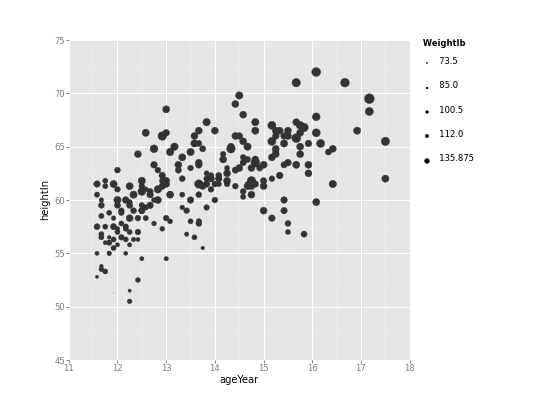

ggplot(heightweight, aes(x="ageYear", y="heightIn", size="weightLb")) + geom_point()
<ggplot: (33588397)> <ggplot: (33588397)> |
ggsave('fig-5.9.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

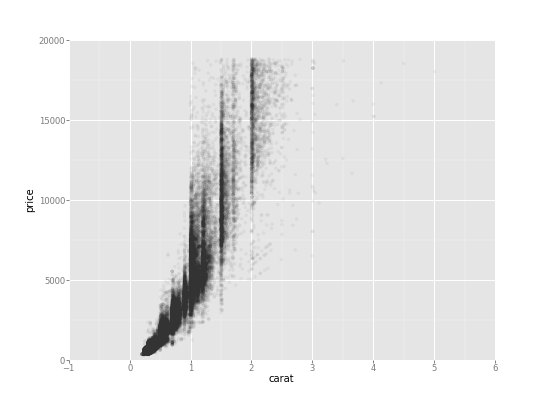

# Rec.5.5 オーバープロットを扱う
ggplot(diamonds, aes('carat', 'price')) + \
geom_point(alpha=1/20.) + \
ylim(0, 20000)
<ggplot: (33358673)> <ggplot: (33358673)> |
ggsave('Rec.5.5.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

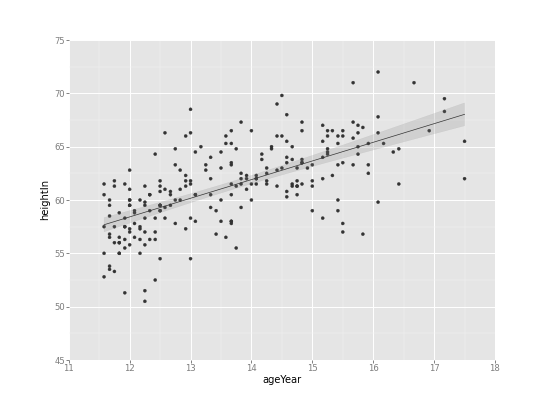

# Rec.5.6 回帰モデルの直線をフィットさせる
ggplot(heightweight, aes(x="ageYear", y="heightIn")) + geom_point() + stat_smooth(method="lm", se=True)
<ggplot: (35310553)> <ggplot: (35310553)> |
ggsave('Rec.5.6.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

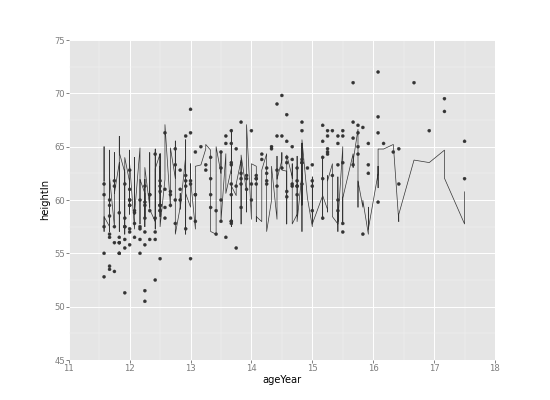

ggplot(heightweight, aes(x="ageYear", y="heightIn")) + geom_point() + stat_smooth()
<ggplot: (35162397)> <ggplot: (35162397)> |
ggsave('fig-5.19.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

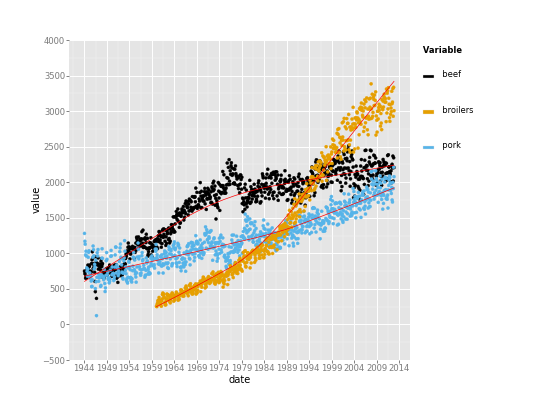

# ggplotの例題だと上手く表示できている
meat_lng = pd.melt(meat[['date', 'beef', 'pork', 'broilers']], id_vars='date')
ggplot(aes(x='date', y='value', colour='variable'), data=meat_lng) + \
geom_point() + \
stat_smooth(color='red')
<ggplot: (34522237)> <ggplot: (34522237)> |
ggsave('sample1.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rの結果は
graph = preGraph("fig-5.19.png")
r('p <- ggplot(heightweight, aes(x=ageYear, y=heightIn)) + geom_point() + stat_smooth()')
r('plot(p)')
postGraph(graph)
|
|
# glmでのスムーズ曲線
r('library(MASS)')
graph = preGraph("fig-5.20.png")
r('b <- biopsy')
r('b$classn[b$class == "benign"] <- 0')
r('b$classn[b$class == "malignant"] <- 1')
r('p <- ggplot(b, aes(x=V1, y=classn)) + geom_point(position=position_jitter(width=0.3, height=0.06)) + stat_smooth(method=glm, family=binomial)')
r('plot(p)')
postGraph(graph)
|
|
# 不要な散布図のレシピは省略
|
|

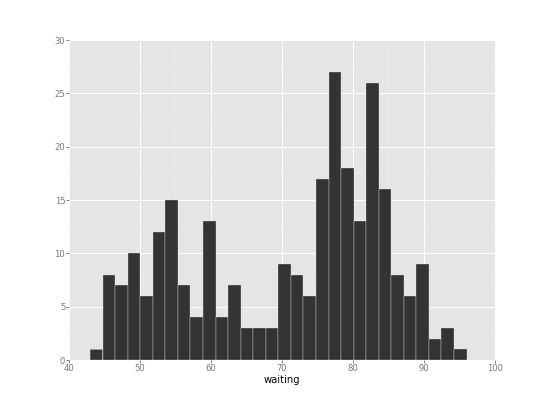

# Rec.6.1 基本的なヒストグラムを作成する
faithful = RDf2PandaDf('faithful')
ggplot(faithful, aes(x="waiting")) + geom_histogram()
binwidth defaulted to range/30. Use 'binwidth = x' to adjust this. <ggplot: (35339569)> binwidth defaulted to range/30. Use 'binwidth = x' to adjust this. <ggplot: (35339569)> |
ggsave('Rec.6.1.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

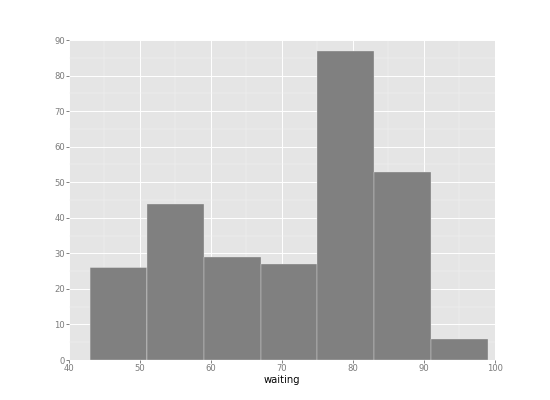

# binwidth=5 と色を変更
ggplot(faithful, aes(x="waiting")) + geom_histogram(binwidth=8, color="grey")
<ggplot: (34787545)> <ggplot: (34787545)> |
ggsave('fig-6.2.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

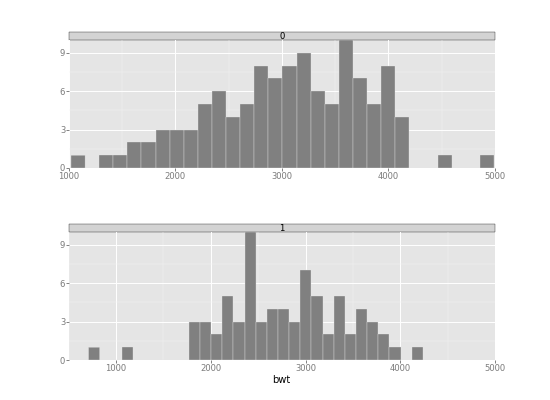

# Rec.6.2 グループ化されたデータから複数のヒストグラムを作成する
birthwt = RDf2PandaDf('birthwt')
ggplot(birthwt, aes(x="bwt")) + geom_histogram(color="grey") + facet_wrap("smoke")
binwidth defaulted to range/30. Use 'binwidth = x' to adjust this. binwidth defaulted to range/30. Use 'binwidth = x' to adjust this. <ggplot: (34749173)> binwidth defaulted to range/30. Use 'binwidth = x' to adjust this. binwidth defaulted to range/30. Use 'binwidth = x' to adjust this. <ggplot: (34749173)> |
ggsave('fig-6.4.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

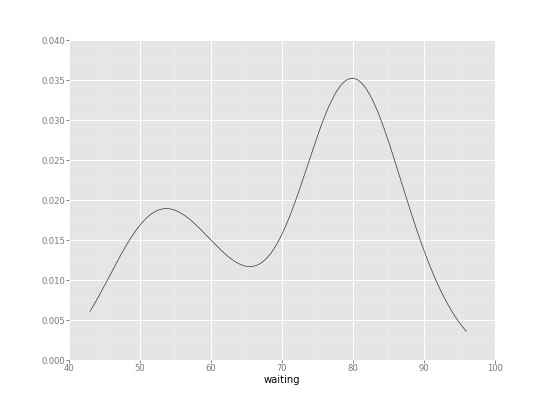

# Rec.6.3 密度曲線を作成する
ggplot(faithful, aes(x="waiting")) + geom_density()
<ggplot: (35782601)> <ggplot: (35782601)> |
ggsave('fig-6.3.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

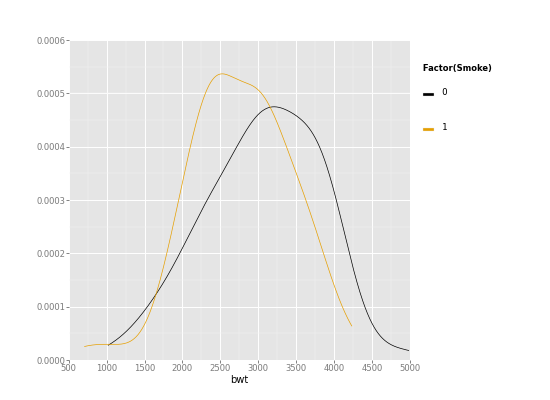

# Rec.6.4 グループ化されたデータから複数の密度曲線を作成する
ggplot(birthwt, aes(x="bwt", colour="factor(smoke)")) + geom_density()
<ggplot: (35987565)> <ggplot: (35987565)> |
ggsave('Rec.6.4.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# Rec.6.6 基本的な箱ひげ図を作成する
graph = preGraph("Rec.6.6.png")
r('p <- ggplot(birthwt, aes(x=factor(race), y=bwt)) + geom_boxplot()')
r('plot(p)')
postGraph(graph)
|
|
# Rec.6.12 2次元データから密度プロットを作成する
graph = preGraph("Rec.6.12.png")
r('p <- ggplot(faithful, aes(x=eruptions, y=waiting)) + geom_point() + stat_density2d()')
r('plot(p)')
postGraph(graph)
|
|

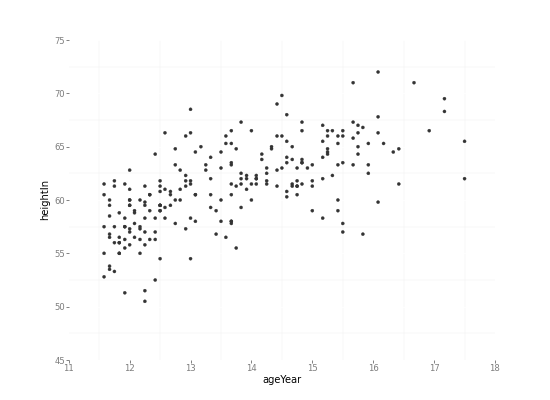

# Rec.9.3 テーマを使う
# ブラックとホワイトのテーマ
ggplot(heightweight, aes(x="ageYear", y="heightIn")) + geom_point() + theme_bw()
<ggplot: (35998293)> <ggplot: (35998293)> |
ggsave('Rec.9.3.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|

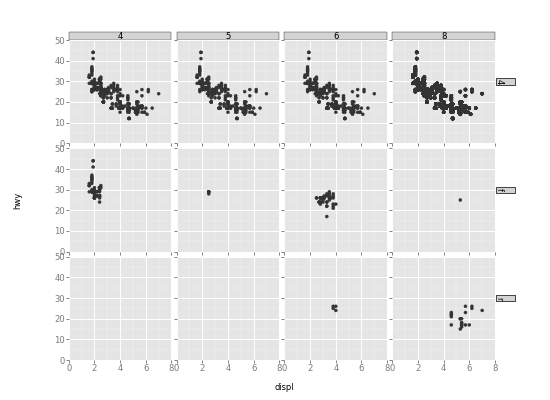

# Rec.11.1 ファセットを使いサブプロットに分割する
mpg = RDf2PandaDf('mpg')
ggplot(mpg, aes(x="displ", y="hwy")) + geom_point() + facet_grid("drv", "cyl")
<ggplot: (36280017)> <ggplot: (36280017)> |
ggsave('Rec.11.1.png', dpi=50)
Saving 11.0 x 8.0 in image. Saving 11.0 x 8.0 in image.
|
# R版では、水平、垂直パネルにも分割できる
graph = preGraph("fig-11.1.png")
r('p <- ggplot(mpg, aes(x=displ, y=hwy)) + geom_point()')
r('p <- p + facet_grid(drv ~ .)')
#r('p + facet_grid(. ~ cyl)')
#r('p + facet_grid(drv ~ cyl)')
r('plot(p)')
postGraph(graph)
|
|
# 地図のプロット
# r('install.packages("mapproj")')
r('library(maps)')
[1] "maps" "MASS" "plyr" "jsonlite" "gcookbook" "ggplot2" "stats" "graphics" [9] "grDevices" "utils" "datasets" "methods" "base" [1] "maps" "MASS" "plyr" "jsonlite" "gcookbook" "ggplot2" "stats" "graphics" [9] "grDevices" "utils" "datasets" "methods" "base" |
# アメリカの地図データを取得
junk = r('states_map <- map_data("state")')
|
|
r('class(states_map)')
graph = preGraph("fig-13.32.png")
r('p <- ggplot(states_map, aes(x=long, y=lat, group=group)) + geom_polygon(fill="white", colour="black")')
r('plot(p)')
postGraph(graph)
|
|
# 世界地図から日本と韓国、中国をプロット
r('world_map <- map_data("world")')
junk = r('east_asia <- map_data("world", region=c("Japan", "China", "North Korea", "Sourth Korea"))')
|
|
graph = preGraph("fig-13.33.png")
r('p <- ggplot(east_asia, aes(x=long, y=lat, group=group, fill=region)) + geom_polygon( colour="black") + scale_fill_brewer(palette="Set2")')
r('plot(p)')
postGraph(graph)
# グラフがゆがんでいるのは、要チェックです。
|
|
# 塗り分け地図（コロプレス地図）
r('states_map = map_data("state")')
r('crimes <- data.frame(state = tolower(rownames(USArrests)), USArrests)')
r('crime_map <- merge(states_map, crimes, by.x="region", by.y="state")')
graph = preGraph("fig-13.35.png")
r('p <- ggplot(crime_map, aes(x=long, y=lat, group=group, fill=Assault)) + geom_polygon( ) + coord_map("polyconic")')
r('plot(p)')
postGraph(graph)
|
|
# 日本地図
# r('install.packages("raster")')
r('library(raster)')
# シェープファイルを読み込む場合は、readShapePoly関数を使用する
|
|
r('japan_shp <- getData("GADM", country="JPN", level=1)')
r('japan_map <- fortify(japan_shp)')
graph = preGraph("fig-13.40.png")
r('p <- ggplot(japan_map, aes(x=long, y=lat, group=group)) + geom_path(lwd=0.5)')
r('plot(p)')
postGraph(graph)
# プロットにちょっと時間がかかります。
|
|
# arrow用にgridパッケージをロード
r('libraray(grid)')
# プロットデータの加工
junk = r('islice <- subset(isabel, z == min(z))')
|
|
# ベクトルフィールドのプロット
graph = preGraph("fig-13.22.png")
r('p <- ggplot(islice, aes(x=x, y=y)) + geom_segment(aes(xend = x+vx/50, yend = y+vy/50), arrow= arrow(length = unit(0.1, "cm"), size = 0.25)')
r('plot(p)')
postGraph(graph)
|
|
|
|
